PG5600 自动电导仪

订购信息

规格

支持资源

Sort	ProductPage	Product Code	Description	Supported Can Diameters
60	PG5600	PG5600-00111	Compact, Automatic Enamel Rater - Standard conveyor 24 cans	202 (54mm) to 214/300 (73mm) automatic adjustment
61	PG5600	PG5600-00211	Compact, Automatic Enamel Rater - Short infeed conveyor	202 (54mm) to 214/300 (73mm) automatic adjustment
62	PG5600	PG5600-00311	Compact, Automatic Enamel Rater - Mass conveyor 200 cans	202 (54mm) to 214/300 (73mm) automatic adjustment

Sort	ProductLink	Product Code	Item	Description
50	PG5600, SI9600, SC8880, SI611x, SI630x, SI9100, SI9208, SI9650, SI9200	SX1000	Data-Bridge Software	Adds data logging functionality to gauges with only an RS232 serial interface. Download the SX1000 Product Data Sheet

Sort	Product Code	Description	App	ProductLink
1	215-22190-01	Consumables kit: Empty pipe subassembly, can contact blades, electrolyte filter element, fan filter, 'O' ring for croc mechanism, 'O' ring for pressure vessel	1	PG5600
2	215-22190-02	Wear Parts Kit: Electrolyte check assembly, rating probe, level probe - rating head, level probe - pre-fill head, hose clip, spring - empty pipe, spring - gripper, G4 seal for 4" PG5600 tank lid, aspirator.	1	PG5600

Sort:: 1
ProductPage:: PG5600
Material:: Aluminium and Steel
Cans Accepted:: Necked and Un-necked
Maximum Batch Size:: 200 cans
Machine Throughput:: Typically 5 cans per minute (211, 330ml cans)
24 can batch processed in 6 minutes (330ml, 211 cans)

Sort:: 1
ProductPage:: PG5600
Air Supply:: 6 bar (87 PSI) at 150 l/min

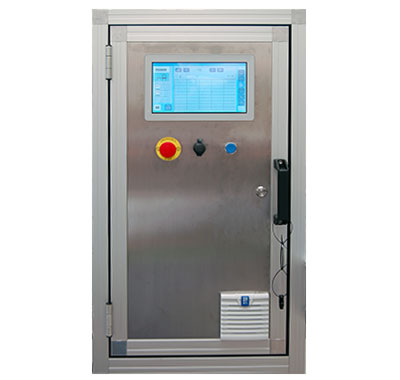

Controller:: Integrated colour touch-screen HMI
Loading:: Automatic
Back-to-back auto-sampling functionality allows cans to be requested directly from the conveyor.
Dimensions:: PG5600 no conveyor
Length: 820mm (32.3")
Width: 520mm (20.47")
Height:1760mm (69.29")
Compliance:: CE marked, complies with relevant EU product directives
Calibration:: Electronics module is calibrated to traceable standards
Annual recalibration / re-validation of gauge accuracy is strongly recommended

由于产品不断开发，实际规格可能会发生变化。电&OE

访问 PG5600 自动电导仪 户手册、软件和其他资源请登录我们的技术文档库。如果您没有用户帐户，您可以在此处请求注册。.

请注意: 需要公司电子邮件地址才能访问。不接受个人和基于网络的电子邮件帐户（例如 gmail）。请注意，注册过程不是自动化的，因此根据提出请求的时间，授予访问权限可能会延迟

Selection
	PG5600 Auto Enamel Rater
	PG5600-00111 Auto Enamel Rater with standard 24 can conveyor
	PG5600-00211 Auto Enamel Rater with short infeed conveyor
	PG5600-00311 Auto Enamel Rater with 200 can mass conveyor

简单、快速、低成本自动电导仪
