Avaliador de Verniz Automático

Avaliador de Verniz (Porosímetro) Automático

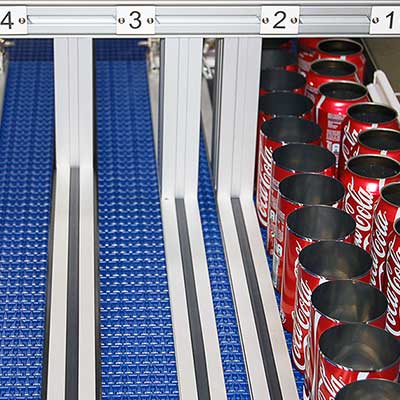

*Para acomodar um lote completo de latas, é aconselhável um transportador de múltiplas pistas.

MÓDULO PRINCIPAL E OPÇÕES DE TRANSPORTADORE

Each lane has a capacity of 24 cans (211 diameter).
Automatic in-line feed is possible as special option on all lanes.
Conveyor extensions are also possible.

OPÇÕES E ACESSÓRIOS

CAPACIDADES DO PRODUTO

Sort:

1

ProductPage:

MS660x

Material:

Aluminium and Steel

Cans Accepted:

Standard Variant: 202 (54mm) to 211 (68mm) automatic adjustment
Large Can Variant: 214/300 (73mm) single size
Super Size Can Variant: 307 ( 84mm) single size

Maximum Batch Size:

255 cans (auto fed), 24 cans (manual fed)

Measurement Features:

Large number of measurement combinations and pass / warning / fail thresholds can be defined and stored using programmable measurement procedures and tests, allowing different parameters to be set easily for different can types or sizes, different customers or different measurement purposes (production, recheck, setup, etc.)
Factory line and machine nos. can be entered (manually or by association with procedure) for measurement traceability

Accuracy:

±1% of reading ±1 L.S.D

Rating Duration:

Preset at 4 seconds

ESPECIFICAÇÕES

Sort:

1

ProductPage:

MS660x

Voltage:

100-120 V or 200-240 V (Gauge is powered through the Conveyor Core)
Single phase, 50 or 60 Hz

Air Supply:

6 bar (87 PSI) at 150 l/min

Temperature Range:

5°C to 50°C (41°F to 122°F)

Relative Humidity:

0% to 80% non-condensing

Ingress Protection:

IP20

Safety:

Red, amber and green beacons to indicate system status from a distance (green indicates running batch OK, amber and red are configurable to show warning and fault conditions selected by user)
Relay outputs for flexible triggering of external (customer) warning systems

Controller:

Process Master™ gauge software running on an integrated PC within the Conveyor module

Measurement Reporting:

Batch results displayed on PC screen and optionally sent as report to network storage or network printer. Result report format customised as agreed at time of customer order
No. of batch results stored: user-definable in software (default = 100)

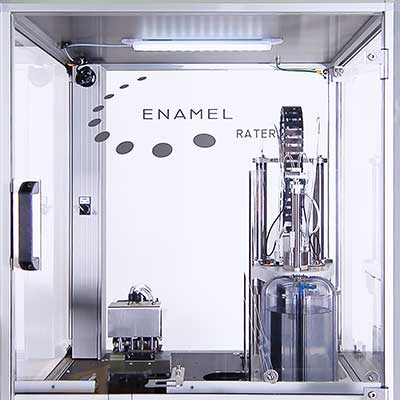

Loading:

Automatic

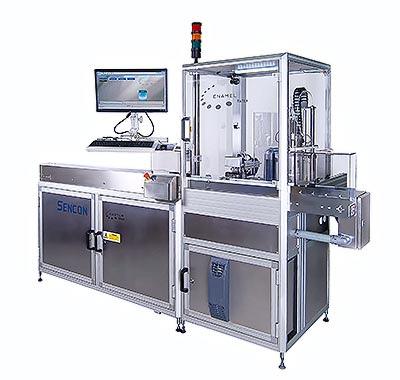

Dimensions:

Gauge cabinet (including rear chute)
Width: 1053 mm (41.45")
Depth: 780 mm (30.70")
Height: 1840 mm (72.44")

For full system, add the following to the width:
Reject station: 375 mm / 15.0”
Single Lane Conveyor: 1941 mm (76.42”)
3 or 5 Lane Conveyor: 2401 mm (94.53”)

Weight:

275kg

Compliance:

CE marked, complies with relevant EU product directives

Calibration:

Electronics module is calibrated to traceable standards
Annual recalibration / re-validation of gauge accuracy is strongly recommended

Devido ao desenvolvimento contínuo do produto, as especificações reais podem mudar. E&OE

Custos reduzidos de serviço e manutenção com monitoramento remoto

Help Videos for Avaliador de Verniz (Porosímetro) Automático
