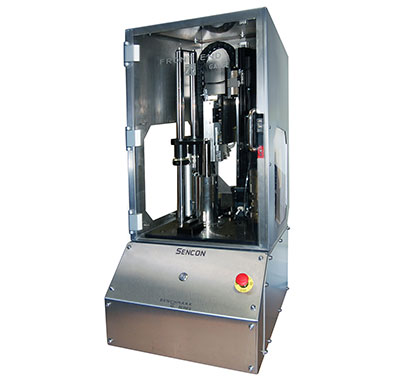

Medidor de latas recortados (sin cuello)

Medición semiautomática de las principales dimensiones de latas de bebidas recortadas (sin cuello)

EL medidor de latas recortados Benchmark™ mide la altura de la lata, el espesor de la pared lateral media y superior y la profundidad del domo en latas de bebidas recortadas y sin cuello.

  • Medición automática de características críticas.
  • Múltiples tamaños de latas con inserto sin herramientas
  • Excelente R&R: no hay influencia del operador en los resultados
  • Tecnología bien probada
  • Autocontrol/autocalibración constante
  • Variantes de sonda única y múltiple disponibles
  • También disponible como versión Master Series™ totalmente automática
icon for 2-piece (DWI) food cansFor 2-piece (DWI) cans
icon for 3-piece (welded) food cansFor 3-piece (welded) cans
INFORMACIÓN DE COMPRA
ESPECIFICACIONES
DETALLES
GAMA DE PRODUCTOS
RECURSOS DE APOYO

Medidor de latas recortados (sin cuello)

SortProductPageProduct CodeDescriptionCan BodyCan Heights
170SI680xSI6802Benchmark™ Front End Gauge: Single probe202 (54mm) to 214/300 (73mm) tool-free change parts87mm to 196mm automatic adjustment
171SI680xSI6805*Benchmark™ Front End Gauge: Dual-Probe202 (54mm) to 214/300 (73mm) tool-free change parts87mm to 196mm automatic adjustment
172SI680xSI6801Benchmark™ Front End Gauge: DWI Aerosol112 (45mm) to 214/300 (73mm) tool-free change parts96mm to 215mm automatic adjustment

*Las alturas de sonda fijas se especifican al momento de realizar el pedido.

CAPACIDADES DEL PRODUCTO

Sort:
1
ProductPage:
SI680x
Material:
Aluminium and Steel
Cans Accepted:
Un-necked cans only
Maximum Batch Size:
255 cans
Measurement Features:
Height measurements taken at user-specified number of positions (radial slices) around can circumference [see end note 2]
Wall thickness measurements taken at up to 12 vertical positions (vertical slices) and at user-specified number of positions around can circumference (radial slices) at each vertical position – Ability to set different pass / warning / fail thresholds for mid-wall and top-wall measurements
Single dome height measurement at centre of dome
Measurements can be displayed in metric or imperial units
For can height and for wall thickness at each vertical position, can display:
  • Individual readings at all positions around circumference
  • Average of readings around circumference
  • Max. and min. of readings around circumference
  • Range (max. less min.) of readings around circumference
Accuracy:
Can Height: ±0.01mm (±0.39 thou)
Side Wall Thickness: ±0.001mm (±0.039 thou)
Dome Depth: ±0.01mm (±0.39 thou)

TENGA EN CUENTA: Las latas para las pruebas deben estar limpias y secas.


ESPECIFICACIONES

Sort:
1
ProductPage:
SI680x
Voltage:
100 - 240 V a.c., single phase
Air Supply:
6 to 7 bar
Temperature Range:
15ºC to 40ºC (59°F to 104°F)
Relative Humidity:
0% to 80% non-condensing
Ingress Protection:
IP20
Controller:
Process Master™ gauge software running on attached PC
Measurement Reporting:
Batch results displayed on PC screen and optionally sent as report to network storage or network printer (Report format specified at time of order)
No. of batch results stored: user-definable in software (default = 100)
Loading:
Manual loading and unloading
Dimensions:
400 x 650 x 875 mm (15.75" x 25.59" x 34.45")
Weight:
80kg (176lb) gauge only
Compliance:
CE marked, complies with relevant EU product directives
Calibration:
Gauge re-baselines against setting piece (two provided) if measurement drift is detected
Annual calibration of setting pieces is strongly recommended


Debido al desarrollo continuo de productos, las especificaciones reales pueden cambiar. E&OE

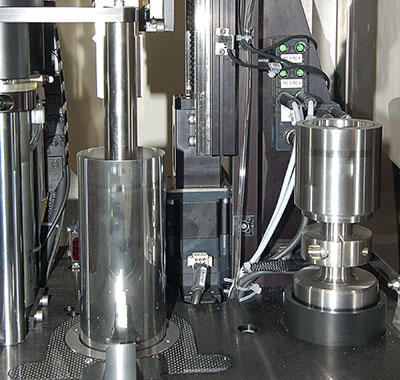

Measures multiple can sizes with tool-free inserts

The SI6800 Front End Gauge (Trimmed Can Gauge) measures can height, mid and top side wall thickness, and dome depth on un-necked, trimmed beverage cans. The gauge uses well-proven technology that eliminates all operator influence on the results.

MULTIPLE CAN SIZES

Cans with different can diameters can be measured with quick change, tool-free change parts. Different can heights need no change parts. So several standard can sizes and shapes can easily and quickly be tested with a single gauge.

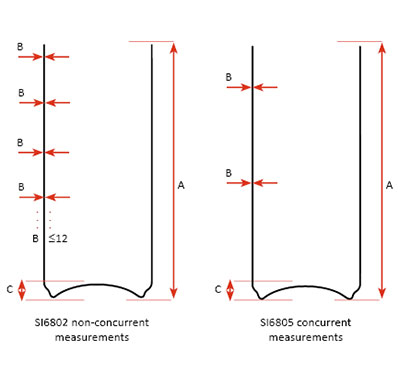

SINGLE, DUAL PROBE

Sencon Front End Gauge - multiple side wall measurements

The SI6802 Single-Probe model can measure side wall thickness at up to 12 vertical locations (to 40 mm from the bottom of the can) and numerous radial positions. The data yielded can be used for side wall modelling to find the transition point. However, as the side wall measurements are made subsequent to the can height and dome depth readings, the cycle time is slightly extended.

The SI6805 Dual-Probe model measures the top and mid wall at two fixed heights concurrently, reducing the overal cycle time. Fixed probe heights are specified by the customer at the time of ordering.

ONE SETTING PIECE

 Every measurement for every batch is automatically qualified using a single UKAS certificated setting piece (for all can sizes). The gauge constantly monitors its own performance and recalibrates if drift is detected. A single setting piece not only saves time and storage space, but also saves costs as only a single setting master requires annual certification. Sencon supply two identical setting pieces, so one can be used while the other is sent for certification.
