Validador del receuento de tapas en los tubos

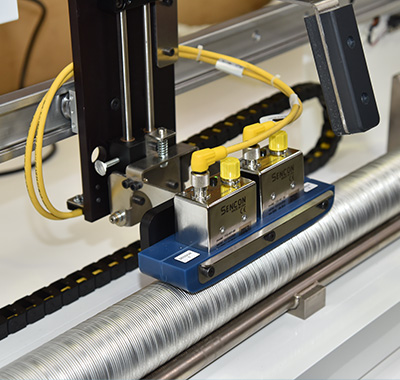

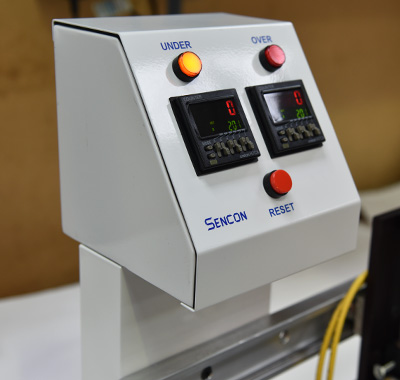

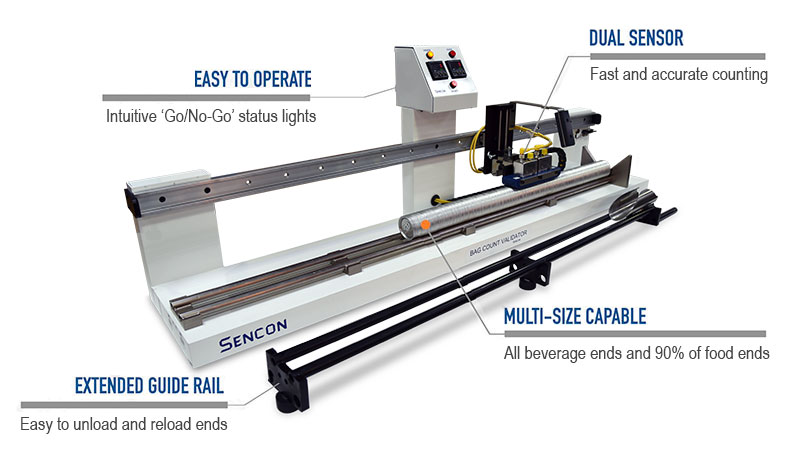

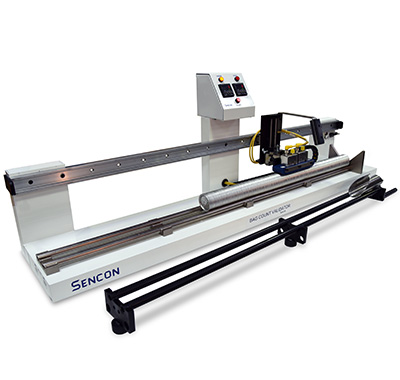

The system consists of two specialized non-contact End Count Sensors designed for reliable and highly accurate counts. The sensors are mounted on a carriage with a linear bearing so the the stack can be moved past the counter quickly and easily. Ends are counted in ‘stick’ form, which makes it easy to unload and reload ends into the bag using the guides provided. Intuitive ‘go/no-go’ status lights are designed for easy operation.



ELIMINATE INNACURATE MANUAL COUNTING

By cutting out costly and inaccurate manual counting and avoiding unreliable hand held counters, Sencon’s A4-403 Bag Count Validator provides fast payback for a relatively low investment.

REDUCE SPOILAGE

By quickly identifying over filled and/or under filled bags, you can significantly reduce ‘line spoilage’ and increase profitability.

REDUCE LABOR COSTS

By eliminating the need for slow and labor intensive manual counting procedures, you can save time and money.

BRAND PROTECTION

By consistently supplying accurately counted bags, you will protect your brand reputation and keep your customers satisfied.

SIMPLE SET-UP

Setting up the Bag Count Validator is simple and quick. Since the unit is portable, it is easily moved from line to line and plugged into a local power source. All an operator needs to do is reset the counters, slide the ends onto the rack using the supplied horns, adjust the sensors to the height of the end, then start counting

EASY TO USE

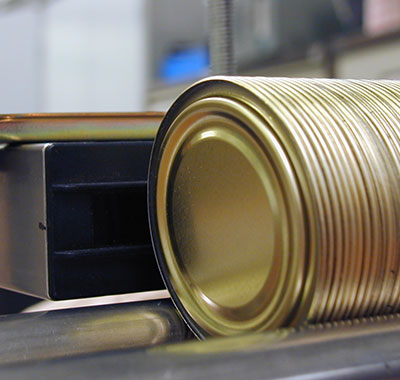

The ends are easy to load and unload in stick form using the horns provided. Sensors used on the system are specially designed to achieve highly accurate and reliable counts each time. By simply sliding the sensors from right to left over the lids, a highly accurate count is taken. (Typically 99.998% accurate when correctly applied and set up).

QUICK, INTELLIGENT AND FLEXIBLE

The sensors are unidirectional, so the system only counts forward, which means that even if ‘jiggling’ occurs, a correct count is still taken. Two counters on the system provide immediate validation. The sensors are adjustable to allow for different end finishes. If your application involves an unusual size, shape or coating, please contact your local Sencon office.
