Calibre y medición | Medidores automáticos | ES8000™ Medidor de tapas básicas
El medidor de tapas básicas de Sencon mide todas las características en el rango más amplio de diámetros de tapas básicas para bebidas y alimentos sin necesidad de cambiar piezas ni realizar ajustes. Un proyectil se escanea ópticamente por ambos lados para detectar cualquier posición en tan solo un segundo. Cada capa se orienta automáticamente en la dirección de la veta independientemente del tipo de revestimiento o decoración. Se pueden configurar lotes de diferentes tamaños a través de tres cajones de alimentación, que se pueden precargar con cartuchos codificados por colores mientras el medidor está en funcionamiento.
Debido al desarrollo continuo de productos, las especificaciones reales pueden cambiar. E&OE
The unique ES8000 hardware platform can be configured as a PROGRESSION GAUGE, SHELL GAUGE, or both. The gauge redefines standards for flexibility and measurement repeatability. The common gauging platform makes it easy to add a second gauging function at any time in the future. So, if your needs change you can simply add a second gauging function inside the same cabinet, saving floor space and costing less than investing in two, new, separate gauges.
Non-contact sensors simultaneously measure features from both top and bottom surfaces of the end. The compiled test results present a clear, accurate and comprehensive visualization of the features measured. If specification limits are reached, the gauge gives immediate warning via the operator screen and the warning beacon. Results are classified, displayed and automatically exported to 3rd party SPC systems.
Batches of different sizes can be set up via three loading drawers, which can be loaded while the gauge is running. Each drawer has separate input and output locations for easy reference.
Additional end designs or features can be added at a later date, made possible with Sencon's new, flexible Gauge Builder software framework.

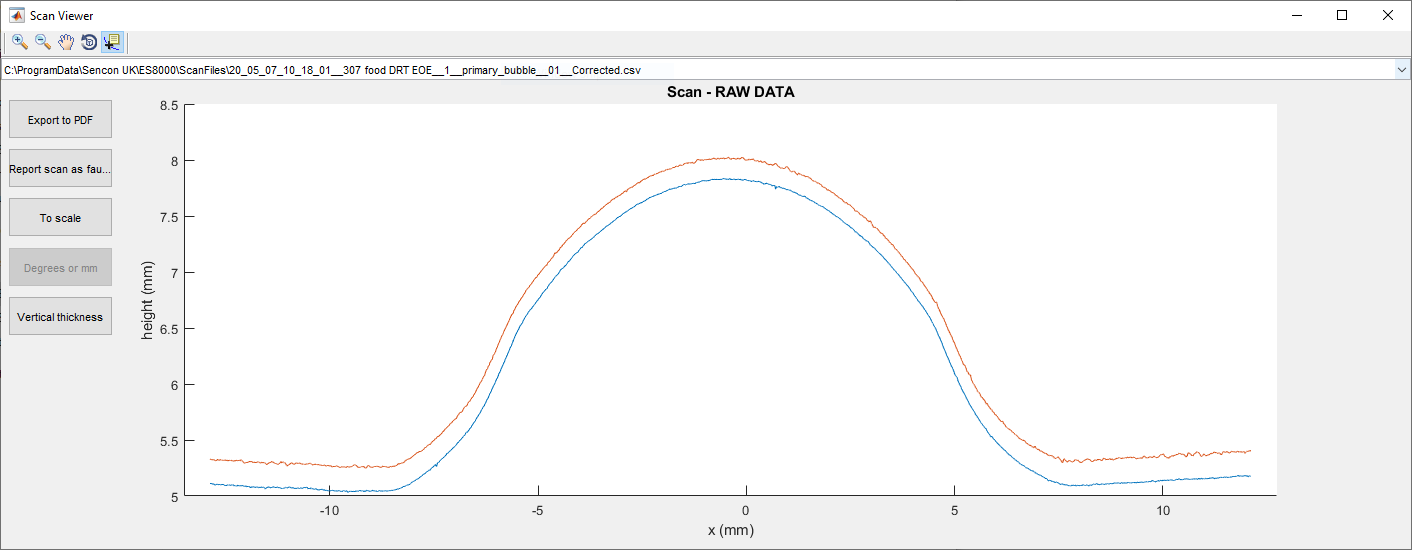

Sencon's Virtual Sectioning™ feature shows complete and accurate profiles of all progression stages, including material thickness.Users can carry out microscopic analysis by zooming in on the fine detail, removing the need for the time consuming and destructive task of physically sectioning ends.
The unit can easily be upgraded to add Shell Gauge functionality in the same cabinet in the future, saving floor space and costing less than investing in two separate gauges. A combined shell and progression gauge can also be specified at the time of purchase.
The Shell Gauge measures the widest range of easy-open beverage and food shell diameters without the need for change parts or adjustment. A shell is optically scanned on both sides for any given position in just one second. Each shell is automatically orientated to the direction of the grain regardless of the coating type or decoration (gauge can be specified without auto grain alignnment for faster throughput).
Measurement of all features is supported on all current shell profiles. Results can be linked to individual shells and presses, with the ability to configure any number of presses. Different size batches can be set up via three infeed drawers, which can be loaded with pre-loaded, color coded cartridges while the gauge is running.
The Progression Gauge for easy-open ends sets new standards for speed and repeatability. It is automatically fed from three loading drawers, making it easy to accept interchangeable end sizes. Non-contact sensors above and below the end measure each stage of the conversion process in very fine detail, including material thickness. This helps to confirm that every progression is accurately formed.
The compiled test results present a very clear, accurate and comprehensive visualization of the features measured. If preset limits are reached, the gauge gives immediate warning via the operator screen and the warning beacon. Results are classified using the customer’s preset limits, displayed, sent over the network and printed out.
Shell &Progression Gauge
A combined shell and progression gauge in one compact unit, reducing floor space, cost and operator training that would be required for multiple gauges. hacer clic aquí
ProgressionGauge
Non-contact measurement of food/beverage end progressions, with an easy upgrade path to add shell measurement if required in future. hacer clic aquí
Para acceder a MANUALES DE USUARIO, SOFTWARE Y RECURSOS ADICIONALES para ES8000™ Medidor de tapas básicas de Sencon INICIAR SESIÓN en nuestra Biblioteca de documentos técnicos. Si no tienes una cuenta de usuario, puedes SOLICITAR LA INSCRIPCIÓN AQUÍ.
TENGA EN CUENTA: Se requiere una dirección de correo electrónico de la empresa para acceder. No se aceptan cuentas de correo electrónico personales ni basadas en web (por ejemplo, gmail). Tenga en cuenta que el proceso de registro no está automatizado, por lo que la concesión de acceso puede retrasarse dependiendo de cuándo se realiza la solicitud.
mírame en acción
Con ingenieros de servicio ubicados en Norteamérica, Sudamérica, Europa y Asia, respaldados por el soporte de nuestros experimentados especialistas de la industria en tres centros de soporte técnico, puede confiar en Sencon para obtener soporte. , calibración acreditada y servicio postventa para su ES8000™ Medidor de tapas básicas.
