Gauging & Measuring | Semi Automatic Gauges | Enamel Rater Can Stands

Can Stands for Enamel Rating

Sencon’s range of enamel rating can stands enables quick and accurate lacquer integrity testing across a wide variety of container types and sizes.

Specifically designed for use with Sencon’s benchtop semi-auto Enamel Raters they are useful for checking the integrity of laquer on 2- and 3-piece beverage and food cans, bottle cans, aerosols and tubes.

  • Engineered specifically to allow quick, accurate enamel rating with minimal setup between different can sizes.
  • Durable design with potted electronics for long-term reliability and easy maintenance.
  • An integrated electrolyte level probe prevents faulty measurements from under-filled cans.
  • The SI920x series automatically carries out a full system integrity check on the can stand and gauge, before starting a batch.
  • Specifically engineered for use with Sencon’s benchtop Enamel Raters such as the new SI9200
icon for 2-piece (DWI) food cansFor 2-piece (DWI) cans
icon for 3-piece (welded) food cansFor 3-piece (welded) cans
icon for can fillersFor can filling lines
PRODUCT VARIANTS
SPECIFICATIONS
PRODUCT DETAILS
ACCESSORIES
SUPPORT RESOURCES

Enamel Rater Can Stands

SortProductPageProduct CodeDescriptionCan BodyCable Supplied
183SI9008SI9101Beverage Can Stand: For straight walled or necked cans202 (54mm) to 214 (73mm)8 pin cable
183SI9008SI9201Beverage Can Stand: Self checking can stand for use with the SI9200. Available Q3202 (54mm) to 214 (73mm)8 pin cable
196SI9008SI9102General Can Stand: Designed to accept a wide range of cansUp to 100mm (3.93") diameter8 pin cable
196SI9008SI9202General Can Stand: Self checking can stand for use with the SI9200. Available Q3Up to 100mm (3.93") diameter8 pin cable
197SI9008SI9103Superstand™ for outsize products - for use with SI9100Up to 190mm (7.5")8 pin cable
198SI9008SI9203Superstand™ for outsize products - for use with SI9200Up to 190mm (7.5")8 pin cable

Please Note: The SI9201, SI9202 and SI9203 can stands are only compatible wth the SI9200 Enamel Rater. The SI9101, SI9102 and SI9103 can stands are compatible with the SI9100 and SI9200 Enamel Raters.
The older SI9000+ Enamel Rater requires can stands with 5-pin connection cables (5-pin version does not allow test voltage control). Please contact your regional Sencon office for advice.


OPTIONS & ACCESSORIES

SortProductLinkProduct CodeItemDescription
0SI9008, SI9108, SI9015, SI9019, SI9101, SI9102SI9200Semi Automatic Enamel RaterA semi-automatic enamel rater that tests for metal exposure by checking the integrity of coatings or lacquer on metal packaging. See product page for more Information
10SI9008113-17851-80211 can centering ringQuick change can centering ring for 211 cans
11SI9008113-17852-80209 can centering ringQuick change can centering ring for 209 cans
12SI9008113-17853-80Sleek can centering ringQuick change can centering ring for Sleek cans
13SI9008113-17854-80202 can centering ringQuick change can centering ring for 202 cans
14SI9008113-17855-8073mm can centering ringQuick change can centering ring for 73mm cans

Can centering rings are suitable for use with the SSI9102 and SI9108

PRODUCT CAPABILITIES

Sort:
1
ProductPage:
SI9008
Material:
Aluminium and Steel
Cans Accepted:
SI9201/SI9101 Beverage can stand:
Maximum can height (external): 195 mm (7.67”)
Minimum can height (internal): 63 mm (2.48”) from inside bottom panel / dome to neck
Maximum body diameter: 73mm (2.87”)*
Minimum body diameter: 50mm (1.97”)*
Minimum stand diameter: 40mm (1.57”)
Minimum neck diameter: 40mm (1.57”)

SI9202/SI9102 General can stand:
Maximum can height (external): 195 mm (7.67”)
Minimum can height (internal): 65 mm (2.56”) from inside bottom panel / dome to neck
Maximum body diameter: 100mm (3.93”)*
Minimum body diameter: 40mm (1.57”)*
Minimum neck diameter: 40mm (1.57”)

SI9203/SI9103 Superstand™:
Maximum Can Height: 320 mm (12.60”)
Maximum Body Diameter: 190mm ( 7.5”)
Maximum Base Diameter: 190 mm ( 7.5”)
Minimum Base Diameter: 15 mm ( 0.59”)
Minimum Neck Diameter: 14.5 mm ( 0.57”)

*When used without can guides.


SPECIFICATIONS

Sort:
1
ProductPage:
SI9008
Controller:
Used with a Sencon Enamel Rater such as the SI9200 or SI9100
Measurement Reporting:
Measurements displayed on the attached Enamel Raters screen
Measurements can be output to PC or printer over serial RS232
Inputs and Outputs:
Integral 8-pin cable for connection to a Sencon benchtop Enamel Rater such as the SI9100 and SI9200
Loading:
Manual loading and unloading
Construction:
Constructed from high-performance engineering-grade plastic with full polyurethane encapsulation. All cable entries are sealed to provide superior corrosion resistance and environmental protection.
Dimensions:
Can Stand Dimensions
Weight:
SI9101, SI9102, SI9201 and SI9202: 1.8kg (3.96lb)
SI9103 and SI9203: 2kg (4.4lb)
Compliance:
CE marked, complies with relevant EU product directives

Due to continual product development, actual specifications may change. E&OE

BEVERAGE CAN STAND

Designed to accept a wide range of beverage cans, straight walled or necked, from 202 (54mm) to 214 (73mm) diameter. Available in 2 versions SI9201 which allows the SI9200 enamel rater to perform an automatic system integrity check across gauge and stand and the SI9101 which works with the SI9100 to allow for manual system integrity checks.

  • Calibration confirmation button
  • Hardened stainless steel can contacts for reliable electrical contact
  • Easy-change can supports for 202, 206, 211 or 214 diameter cans
  • Integral electrolyte level check probe
  • Durable corrosion-proof construction
  • Can contact fail-safe check circuit

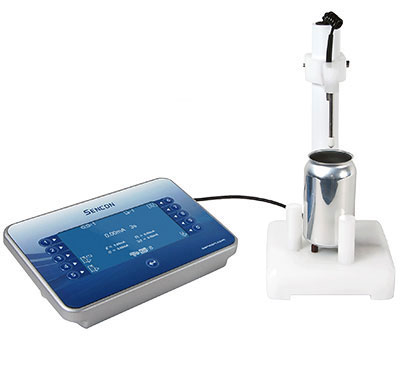

Sencon beverage can stand for enamel rating

GENERAL CAN STAND

Designed to accept a wide range of cans up to 100mm (3.93") diameter, making it a flexible option for general can testing. Available in 2 versions SI9202 which allows the SI9200 enamel rater to perform an automatic system integrity check across gauge and stand and the SI9102 which works with the SI9100 to allow for manual system integrity checks.

  • Integral electrolyte level check probe
  • Durable corrosion-proof construction
  • Hardened stainless steel can contacts
  • Can contact fail-safe check circuit

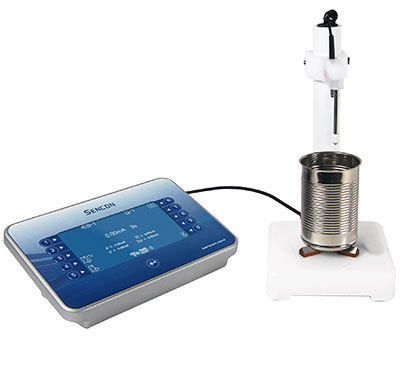

Sencon general can stand for enamel rating

SUPERSTAND™

The new Superstand is designed for greater flexibility across aerosol, bottle, large-diameter welded and low-profile cans. Available in 2 versions SI9203 which allows the new SI9200 enamel rater to perform an automatic system integrity check across gauge and stand and the SI9103 which works with the SI9100 to allow for manual system integrity checks.

  • Suitable for aerosols, bottle cans and large-diameter welded cans
  • Height up to 320mm with broad dimensional flexibility
  • Tungsten carbide can-contact blades
  • Self-test control knob and adjustable probes
  • Corrosion-proof build with sealed electrics
Sencon Superstand for enamel rating
Semi

SI9200
Semi Automatic Enamel Rater

A semi-automatic enamel rater that tests for metal exposure by checking the integrity of coatings or lacquer on metal packaging. See product page for more Information

DIRECT DOWNLOADS

USER MANUALS

SI9008 - SI9108 Beverage Can Stand


SI9008 and SI9108 Can Stands TDS [English].pdf 0.1 Mb Download
SI9101 and SI9102 can stands TDS [English].pdf 0.2 Mb Download
Knowledge Base Software by: KnowledgeBase Manager Pro v6.2.2 (Built with: JS.GUI - IT Helpdesk)

ADDITIONAL RESOURCES

Enamel Rating Reference Guide

This reference guide is a collection of useful information relating to the widely used enamel rating test. The test itself is quite simple, but why it works and how to get the best from the test is not necessarily well known.

Can Stand Level Probe Modification.pdf 0.1 Mb Download
Enamel Rating Reference Guide v1.1.pdf 0.4 Mb Download
Knowledge Base Software by: KnowledgeBase Manager Pro v6.2.2 (Built with: JS.GUI - IT Helpdesk)
