Medição e Medição | Medidores semiautomáticos | Medidor de Espessura de Flange

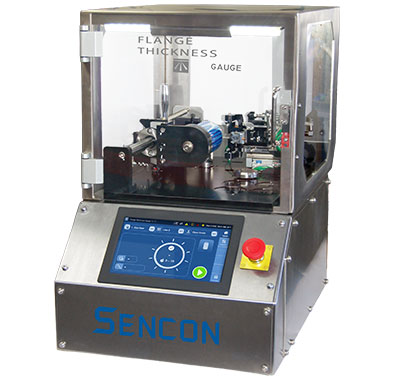

O Medidor de Espessura de Flange Benchmark™ é um medidor de bancada semiautomático e fácil de usar para medir a espessura da flange em latas de bebidas com pescoço. A flange é a característica física mais importante do corpo da lata, pois é a interface crítica entre o corpo da lata e a tampa. Dados precisos sobre a espessura da flange são essenciais para avaliar a integridade das costuras duplas em latas cheias.
Devido ao desenvolvimento contínuo do produto, as especificações reais podem mudar. E&OE
Flange thickness has been part of the specification for beverage and food cans for many years, because this dimension is critical to seaming performance and can integrity. Setting and assessing seam tightness is one of the most important quality control issues for fillers. This crucial function relies on knowing the thickness of the flange on the cans they receive from their suppliers. Until now, this data has relied on inherently variabe manual measurements, or it is simply recorded as a nominal value based on top wall measurent of trimmmed cans at the 'front end' stage of production before the flange has been formed.

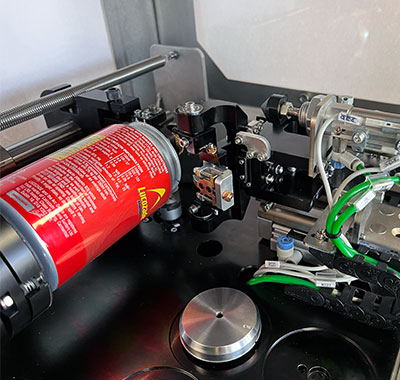

Developed in response to customer requests, Sencon’s benchtop Flange Thickness gauge delivers the industry’s first high-precision solution for measuring this key dimension on the can specification. The gauge uses a Linear Variable Differential Transformer (LVDT) with 1mm ruby tips mounted on a floating gimble that applies near-zero force to the flange. Together with a horizontal loading system that prevents lacquer distortion at the point of measurement, maximum accuracy is assured.
Users can set and store up to 20 user-programmable test procedures via a 9-inch high-resolution icon-driven color touchscreen. The gauge's short cycle time delivers a measurement range of 0 to 0.3 mm with highly repeatable results to ±2μm accuracy. Quick-change, tool-free inserts allow for rapid change can sizes, with change parts conveniently stored inside the gauge.

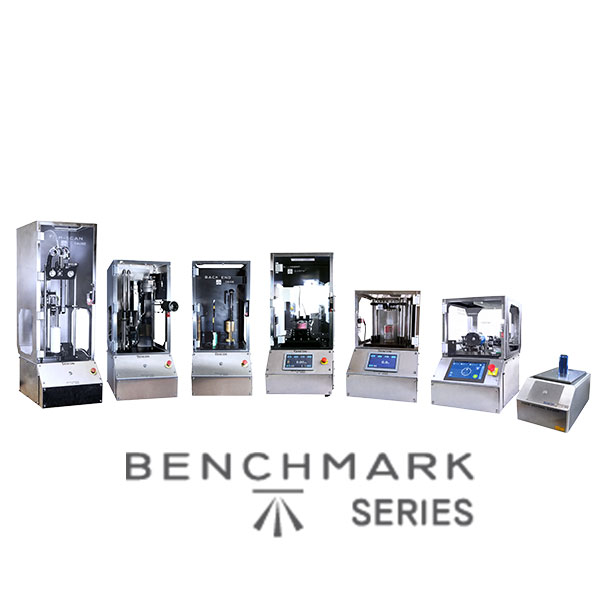

The Benchmark Series is a uniquely comprehensive range of benchtop gauges for beverage can measurement, test and inspection. The gauges use the same advanced technologies as the fully automatic Master Series™, making available Sencon's well-proven gauging solutions in compact, standalone units that are well suited to the quality assurance laboratory and are equally at home beside the production line.
Procedures are defined and selected with Sencon's proprietary Process Master™ gauging software or via intuitive touch screen icons. Then as soon as a can is loaded and the safety door closed the test is automatically carried out.

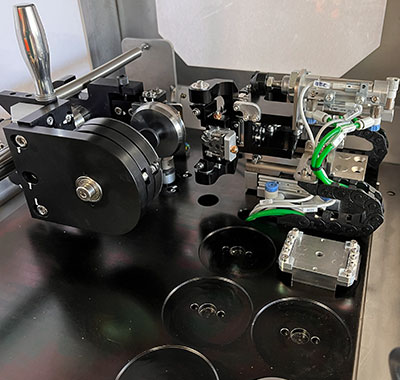

The gauges all accept different can body and neck diameters and can heights, with either no change parts or quick-fit inserts (see individual pages for details).
The gauges are highly configurable for test parameters, setting up of operator and supervisor presets, and for display and output of results.
Reliable and consistent measurements from gauges with excellent R&R (repeatability and reproducibility) allow manufacturers to gain better control of their process. Sencon has carefully researched and developed appropriate technologies for each test to deliver accuracy and efficiency in the beverage can making plant. The gauges are constantly self-monitoring and self-calibrating to ensure optimum performance at all times.
Each gauge is designed for low maintenance, eliminating wear parts where possible to reduce running costs and maximize durability
FRONT END(TRIMMED CAN) GAUGE
The Benchmark™ semi-automatic front end gauge takes measurements of key dimensions on front end trimmed and un-necked beverage cans. clique para mais
BACK END(FINISHED CAN) GAUGE
The Benchmark™ semi-automatic back end gauge takes measurements of key dimensions on finished ('back end') beverage cans. clique para mais
BUCKLE TESTER(DOME REVERSAL) GAUGE
The Benchmark™ semi-automatic buckle (dome reversal) gauge measures the pressure required to reverse the dome on beverage cans. clique para mais
AXIAL LOADGAUGE
The Benchmark™ semi-automatic axial load gauge measures the maximum force which can be applied in the axial plane before deformation of the can. clique para mais
FILM-SCAN™OPTICAL COATINGS GAUGE
A compact, semi-automatic benchtop gauge for non-contact, optical scanning measurement of coatings/film thickness on beverage cans. clique para mais
DOME REFORMGAUGE (DRG)
The Benchmark™ dome reform gauge (DRG) carries out a complete and detailed, non-contact, 360° optical scan of the reform feature beverage can domes. clique para mais
Para acessar os MANUAIS DO USUÁRIO, SOFTWARE E RECURSOS ADICIONAIS do Medidor de Espessura de Flange da Sencon, faça LOGIN em nossa biblioteca de documentos técnicos. Caso não possua conta de usuário, você pode SOLICITAR A INSCRIÇÃO AQUI.
ATENÇÃO: É necessário um endereço de e-mail corporativo para acesso. Contas de e-mail pessoais ou baseadas na web (por exemplo, gmail) não são aceitas. Tenha em atenção que o processo de registo não é automatizado, pelo que a concessão do acesso pode ser atrasada dependendo do momento em que o pedido é feito.
Veja-meem ação
Com engenheiros de serviço baseados na América do Norte e do Sul, Europa e Ásia, respaldados pelo suporte de nossos experientes especialistas da indústria em três centros de suporte técnico,você pode confiar na Sencon para suporte, calibração credenciada e serviço pós-venda para o seu Medidor de Espessura de Flange.
