Pedestal de latas para avaliador de verniz

Pedestal de latas para avaliador de verniz

A versão de 8 pinos é compatível com o Avaliador de Verniz SI9100 que monitora e controla a tensão de teste em todo o equipamento combinado. A versão antiga do Avaliador de Verniz SI9000+ requer suportes com cabos de 5 pinos (a versão de 5 pinos não permite controle de tensão de teste).

OPÇÕES E ACESSÓRIOS

CAPACIDADES DO PRODUTO

Sort:

1

ProductPage:

SI9008

Material:

Aluminium and Steel

Cans Accepted:

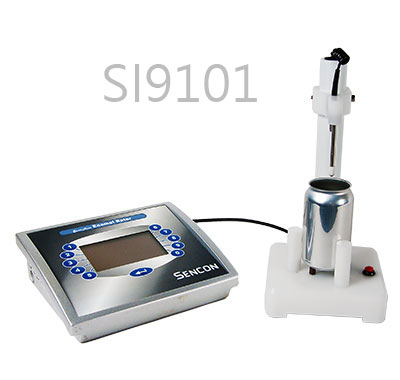

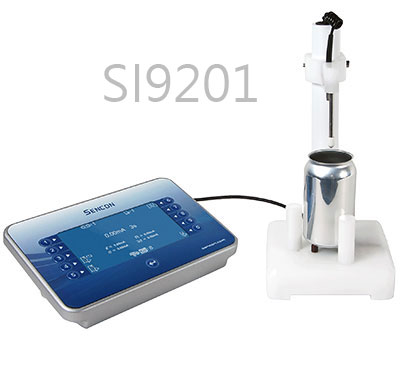

SI9201/SI9101 Beverage can stand:
Maximum can height (external): 195 mm (7.67”)
Minimum can height (internal): 63 mm (2.48”) from inside bottom panel / dome to neck
Maximum body diameter: 73mm (2.87”)*
Minimum body diameter: 50mm (1.97”)*
Minimum stand diameter: 40mm (1.57”)
Minimum neck diameter: 40mm (1.57”)

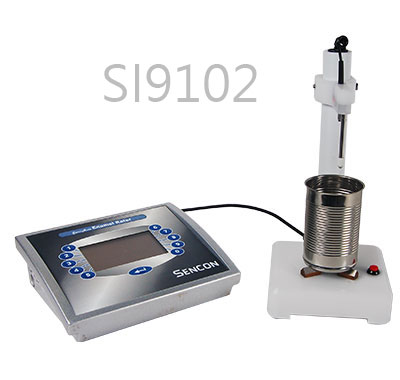

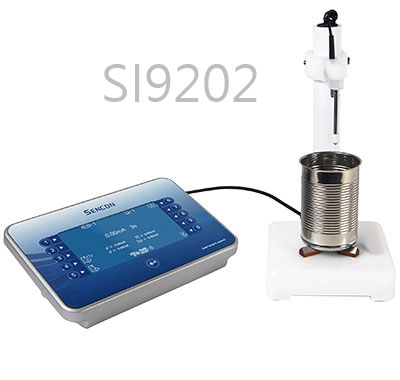

SI9202/SI9102 General can stand:
Maximum can height (external): 195 mm (7.67”)
Minimum can height (internal): 65 mm (2.56”) from inside bottom panel / dome to neck
Maximum body diameter: 100mm (3.93”)*
Minimum body diameter: 40mm (1.57”)*
Minimum neck diameter: 40mm (1.57”)

SI9203/SI9103 Superstand™:
Maximum Can Height: 320 mm (12.60”)
Maximum Body Diameter: 190mm ( 7.5”)
Maximum Base Diameter: 190 mm ( 7.5”)
Minimum Base Diameter: 15 mm ( 0.59”)
Minimum Neck Diameter: 14.5 mm ( 0.57”)

*When used without can guides.

ESPECIFICAÇÕES

Sort:

1

ProductPage:

SI9008

Controller:

Used with a Sencon Enamel Rater such as the SI9200 or SI9100

Measurement Reporting:

Measurements displayed on the attached Enamel Raters screen
Measurements can be output to PC or printer over serial RS232

Inputs and Outputs:

Integral 8-pin cable for connection to a Sencon benchtop Enamel Rater such as the SI9100 and SI9200

Loading:

Manual loading and unloading

Construction:

Constructed from high-performance engineering-grade plastic with full polyurethane encapsulation. All cable entries are sealed to provide superior corrosion resistance and environmental protection.

Dimensions:

Weight:

SI9101, SI9102, SI9201 and SI9202: 1.8kg (3.96lb)
SI9103 and SI9203: 2kg (4.4lb)

Compliance:

CE marked, complies with relevant EU product directives

Devido ao desenvolvimento contínuo do produto, as especificações reais podem mudar. E&OE
