Leak Detection For Ends with QUASAR™ II Light Detection

NOT ALL LEAK DETECTORS ARE CREATED EQUAL!

For more than 25 years, Sencon leak detection systems have been the trusted choice for the world's beverage end conversion presses.

Introducing Quasar™ II: Sencon's latest advance in on-press light leak detection technology. The result of over 25 years of expertise in successfully detecting defects in cans and ends worldwide. Our leak detection systems are used on 4 out of 5 of the world's beverage end conversion presses.


DON'T GET LEFT IN THE DARK

Make sure you specify Sencon Quasar™ II light detectors on your new press to ensure safe and consistent leak detection.

ANATOMY OF A LIGHT DETECTOR

You need 4 things to detect microscopic defects in ends

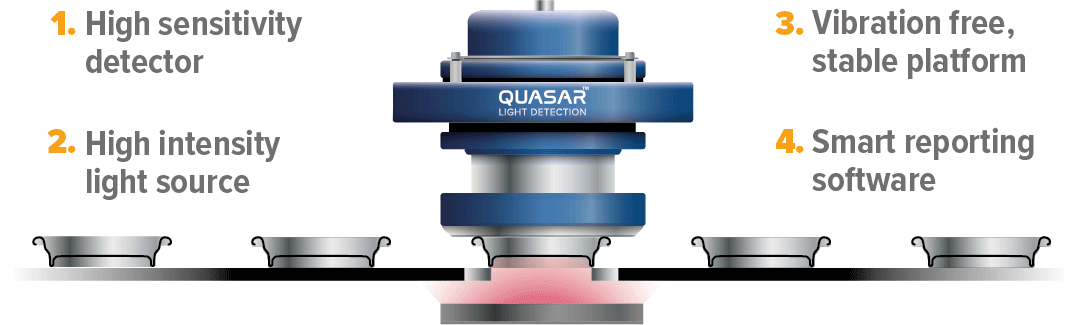

Anatomy of a light tester for cans and ends

Quasar™ II gives you all four and much more

for consistent and reliable results

1. High sensitivity light detector

Although it may be true that white light, with its shorter wavelength, is theoretically able to penetrate smaller holes, silicon light detectors have a much higher sensitivity within the near infra-red wavelength. This allows Sencon’s Quasar™ II infra-red detectors to set their base threshold higher, above the inevitable electrical background noise that is generated within the press – reducing the potential for false rejects and the impact this can have on your production.

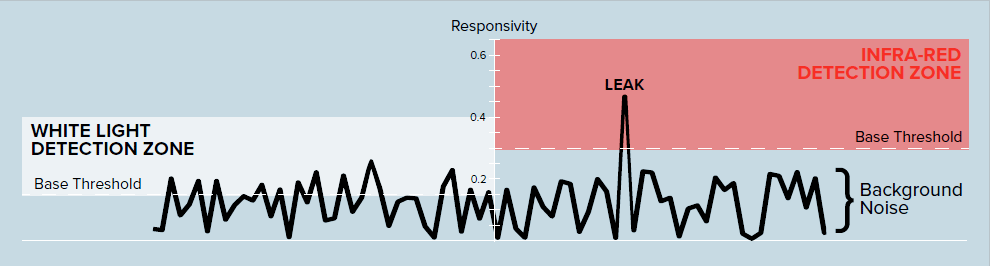

Sencon's Quasar uses infra-red light becasue it is better matched to silicone light detectors
Sencon’s Quasar™ II Light Detection is optimized for near infra-red light, which closely matches the spectral response of silicon light detectors better than 'white light’.


2. High intensity LED light source

The high density of next-generation LEDs in Sencon's QUASAR™ II lighting arrays delivers 20% more light intensity than the previous ELTP model and much more uniform illumination than other systems. The QUASAR™ II arrays also have built-in redundancy protection for consistent and reliable leak detection.


Up to 7 times more LEDs than other systems

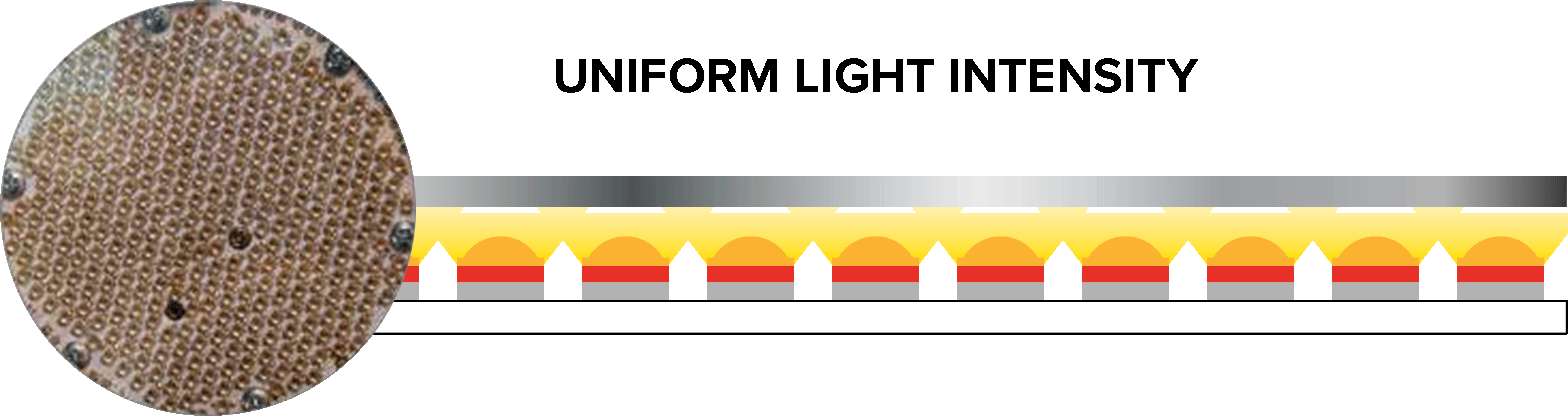

Sencon's Quasar lighting array is high density and intensity
QUASAR™ II LED

High lumen output light source

Up to 7x more LEDs than other systems

Built-in fault tolerance

An integrated sensor in the lighting array informs when lighting and detector heads require cleaning

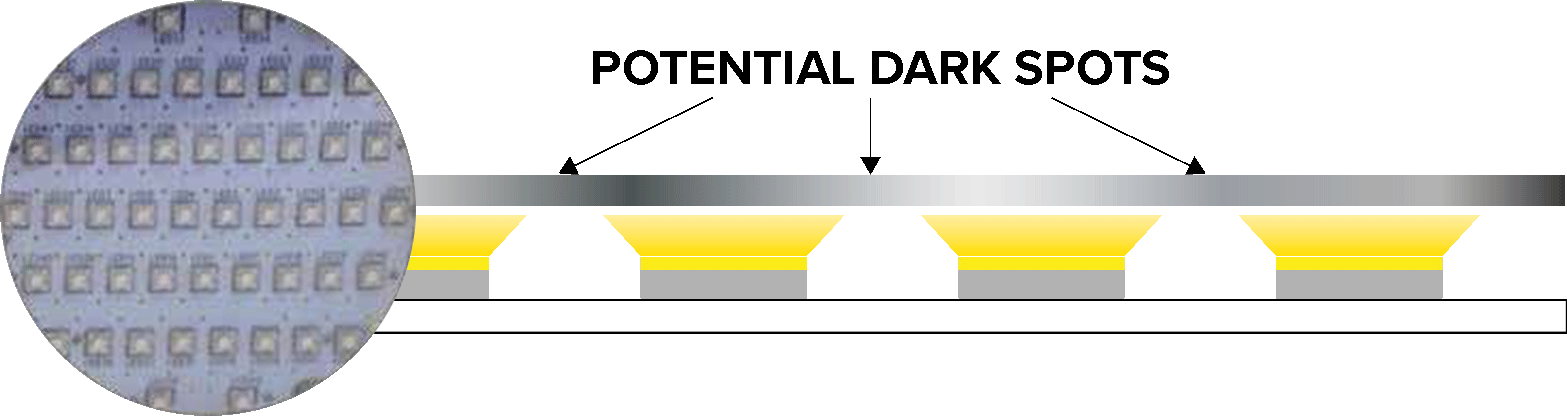

Other lighting arrays are not high density
OTHER LIGHT SOURCES

Lower density of LEDs leads to the potential for ‘dark spots’

3. Vibration suppression

Conversion presses can have upwards of 30G vibration, so having integral vibration suppression built into the detector head is of major importance on fast running presses. Reducing vibration of the detector head will protect the delicate electronics inside from damage, contributing to the long term reliability and longevity of the system. Also, the ability for the detector head to move slightly ensures that the upper inspection plate remains in full contact with the ends, reducing the risk of light leakage and ensuring consistent readings without false rejects.

Quasar™ II detector heads include multi-axis vibration suppression as standard.

4. Smart reporting software

The advanced touchscreen HMI for Sencon’s Quasar™ II light detectors is both powerful and easy to use, allowing for seamless interaction, customization, and control. Real-time information such as bad can counts, fault diagnostics, and system status is displayed on screen. The system sets its own dynamic detection threshold to compensate for variable environmental conditions and the innevitable background noise that occurs on the press. System settings can be quickly accessed through the new touchscreen HMI. The 'cleanliness test' (non-mechanical 'shutter test') does not require any additional hardware and can now be activated via E/IP as well as ModBus TCP. This industry 4.0 compatible system can also integrate data into your plant’s SPC software through E/IP or ModBus.

Light detectors don’t actually measure the size of a hole in an end. They measure the amount of light passing through fractures or microscopic flaws in the metal. From repeated testing over years of experience, Sencon has developed highly reliable algorithms that correlate light detected on the press and equivalent virtual ‘pinholes’.

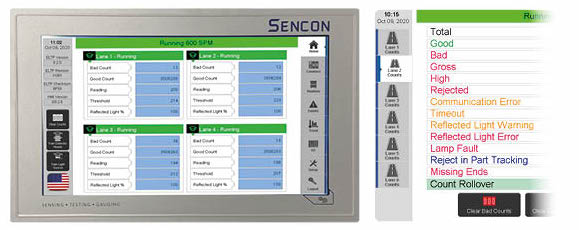

Sencon's Quasar intuitive touch screen interface

System status, production data, trends and diagnostics are available at your fingertips through the intuitive, yet powerful, industry 4.0, smart factory ready, 10” touchscreen display.

Consistent and Reliable Results

Test and inspection systems are only useful if they give you consistent and reliable information about your process. Quasar™ II Light Detection not only finds more leaker, it also finds them more consistently no matter what the orientation.

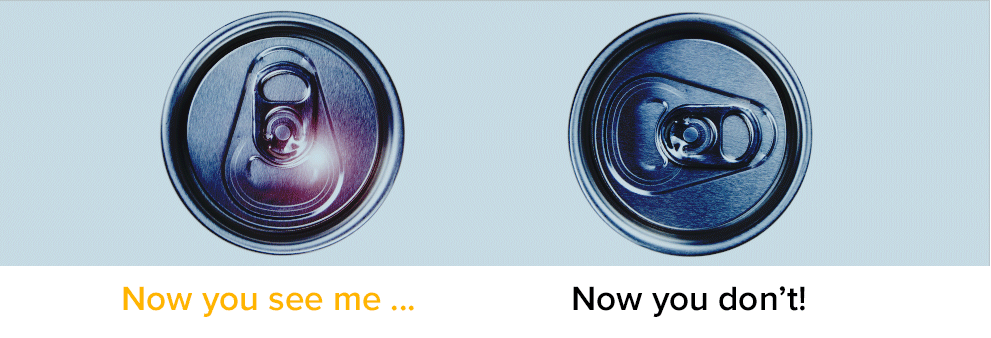

Sencon's Quasar uses infra-red light because it is better matched to silicone light detectors

YOUR TRUSTED PARTNER IN LEAK DETECTION FOR MORE THAN 25 YEARS!

For over 25 years Sencon Light Testers have been running on hundreds of conversion presses all over the world… …with no customer complaints.

So, make sure you specify Sencon Quasar™ II leak detectors for your new production equipment.

Download our white paper

Shedding light on the theory, history, and development of on-press light detection technologies for easy-open beverage can ends. (Click on the button below and an email will be sent to you with a link to the download)
